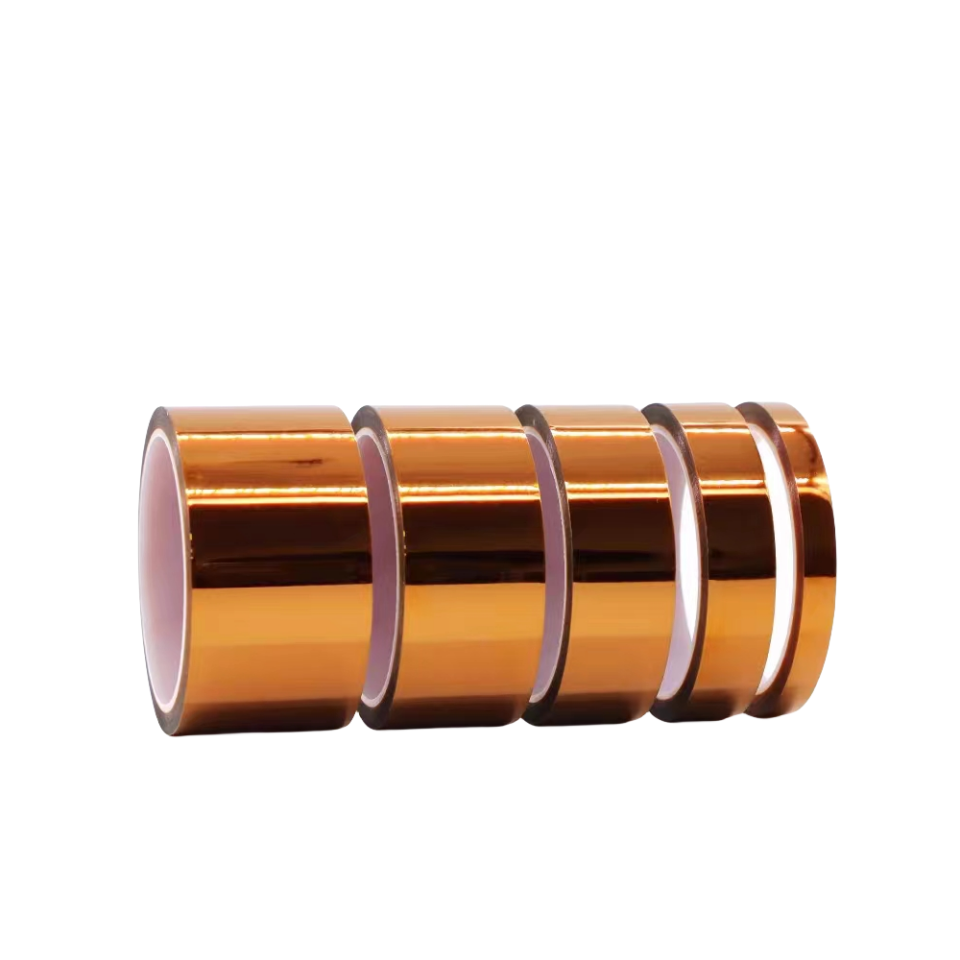

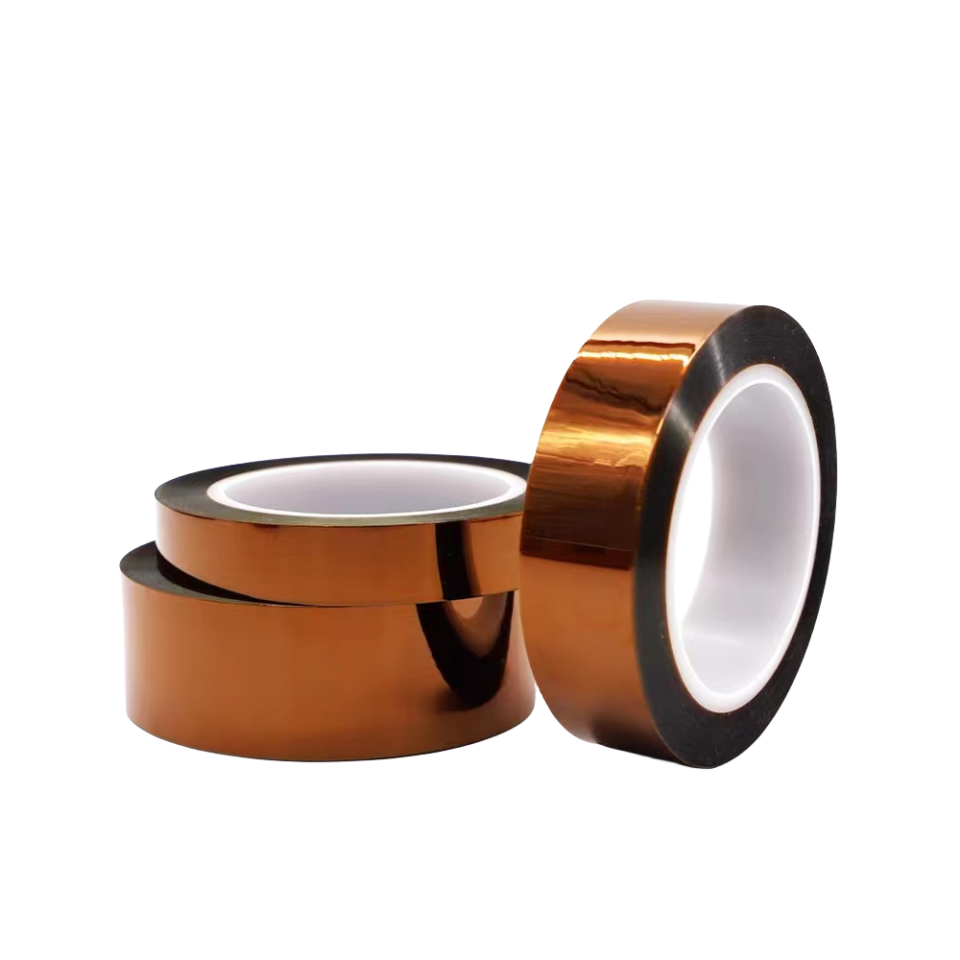

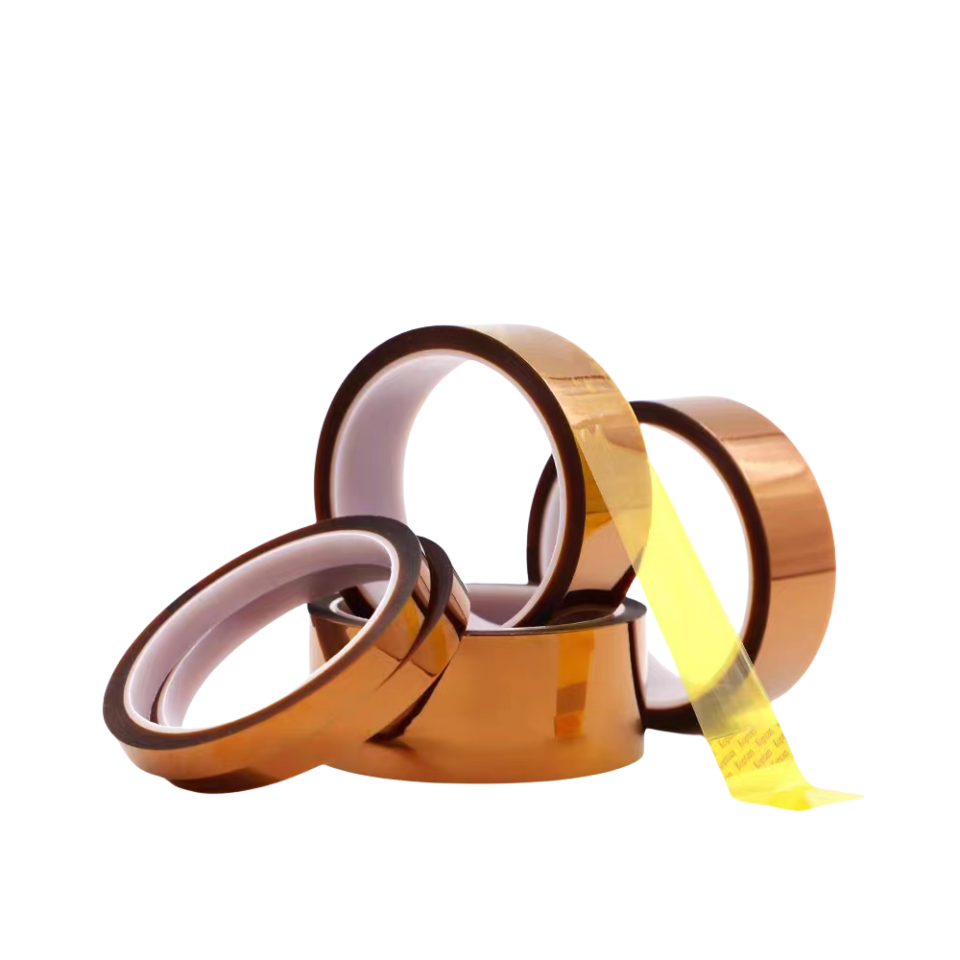

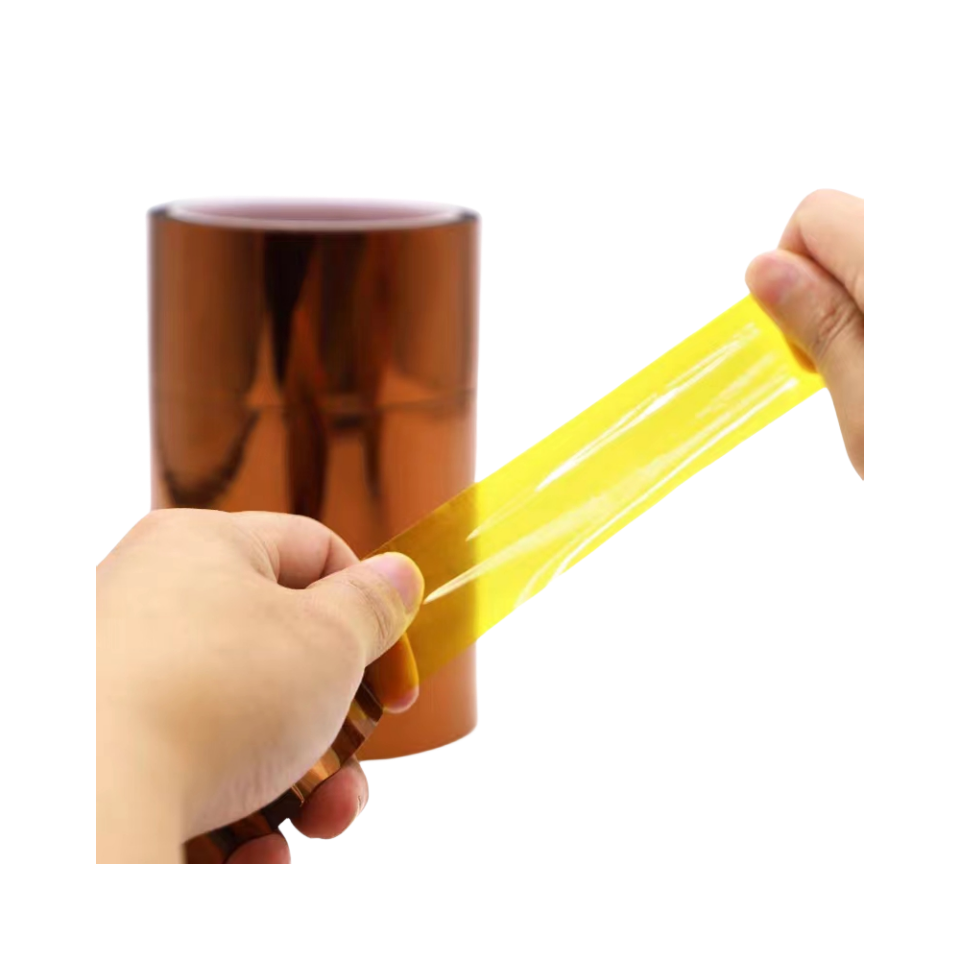

PI high-temperature tape
Transformer, coil, and other high-temperature insulation winding; Circuit board wave soldering protection gold finger
Product characteristics
High temperature resistance
insulation
breakdown voltage resistance
Product Performance Table
| Product model | colour | Glue system | base material | Base material thickness（ μ M) | Total thickness（ μ M) | Temperature resistance (℃) | Peeling force (N/25mm) | Tensile strength (N/25mm) | Elongation rate (%) |
| MS4303 | tea | silica gel | PI | 12.5 | 30 | 260 | 4 | 90 | 40 |
| MS4305 | tea | silica gel | PI | 25 | 50 | 260 | 4 | 100 | 60 |
| MS4306 | tea | silica gel | PI | 25 | 60 | 260 | 5 | 100 | 60 |
| MS4307 | tea | silica gel | PI | 25 | 70 | 260 | 5 | 100 | 60 |
| MS4308 | tea | silica gel | PI | 25 | 80 | 260 | 5 | 100 | 60 |
| MS43110 | tea | silica gel | PI | 50 | 100 | 260 | 6 | 180 | 60 |
| MS44075 | tea | silica gel | PI | 25 | 75 | 260 | A: 6.5/B:6 | 100 | 60 |
| MS44100 | tea | silica gel | PI | 25 | 100 | 260 | A: 10/B: 9 | 100 | 60 |
