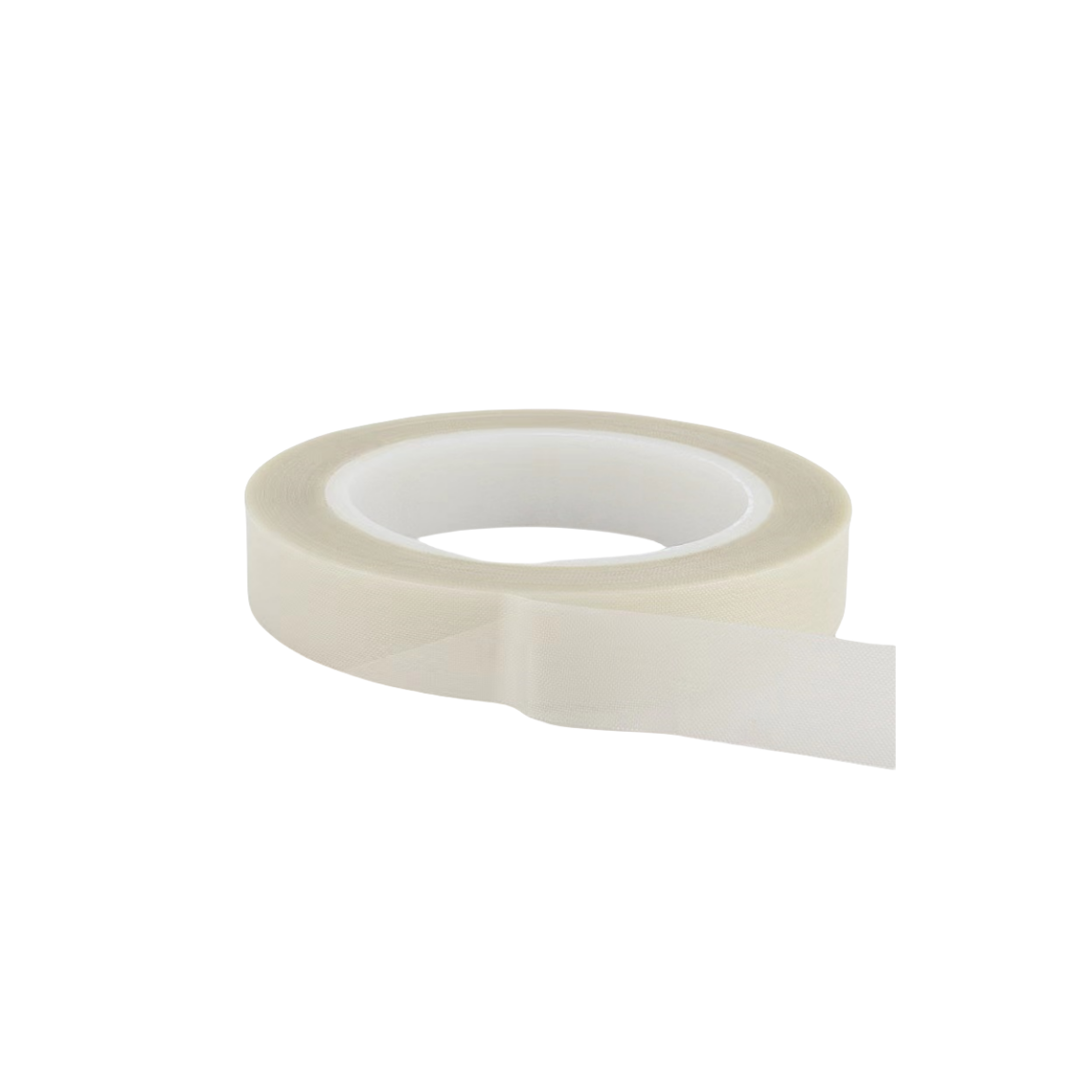

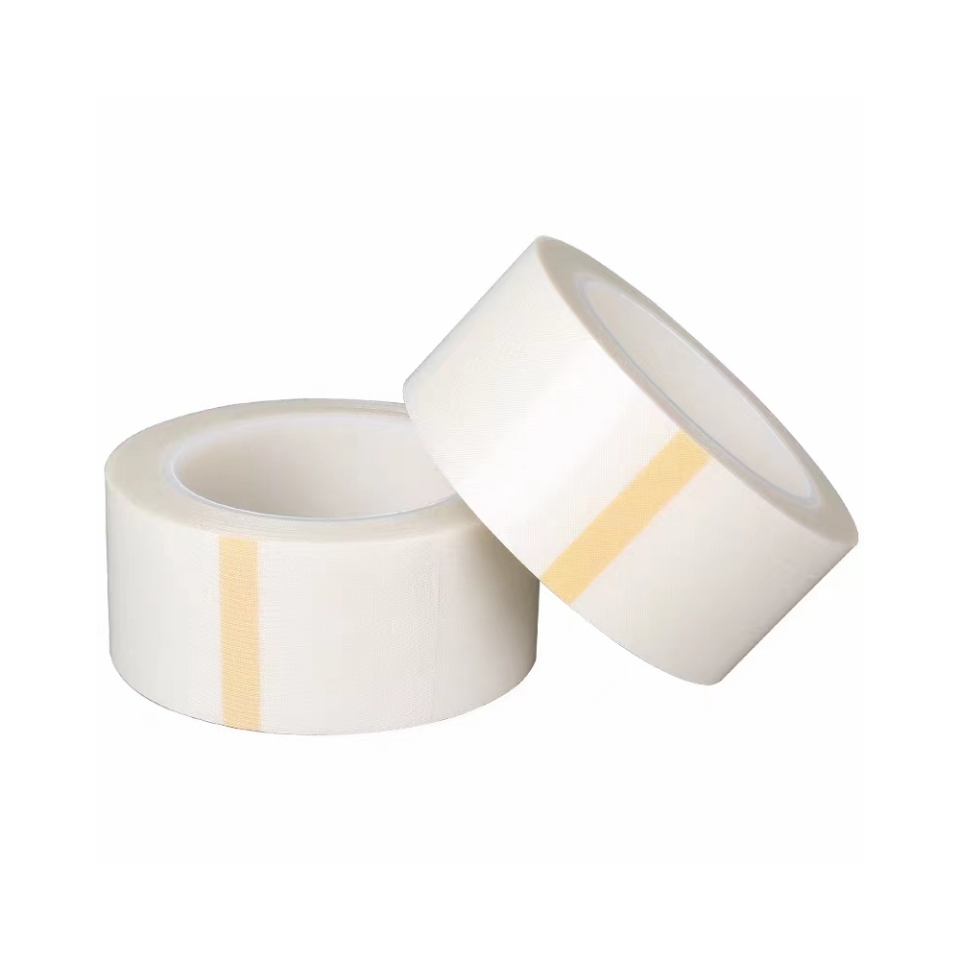

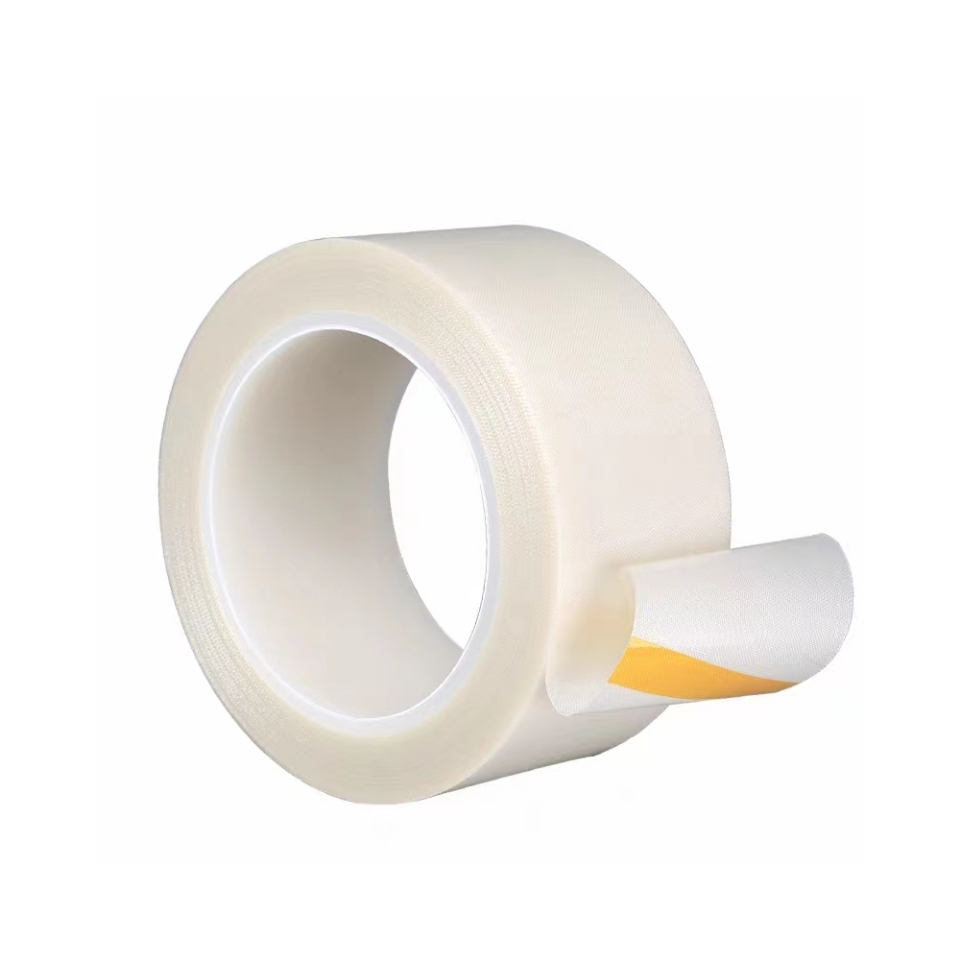

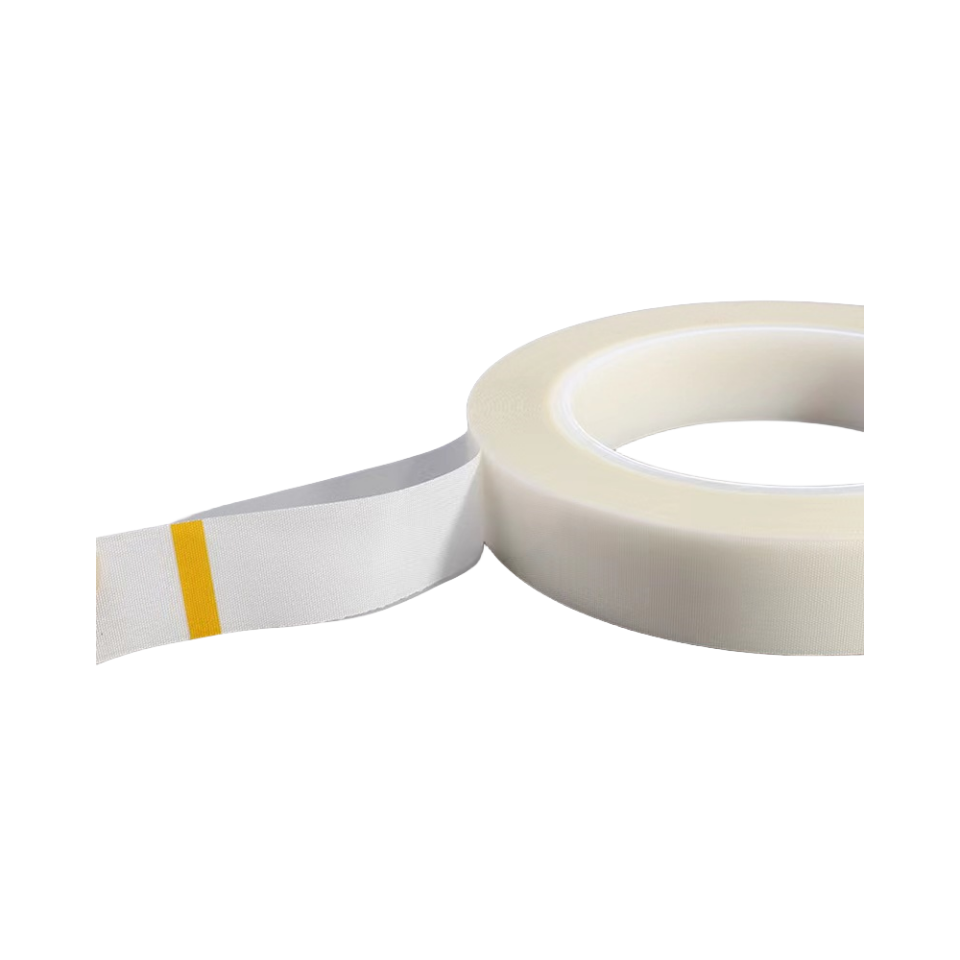

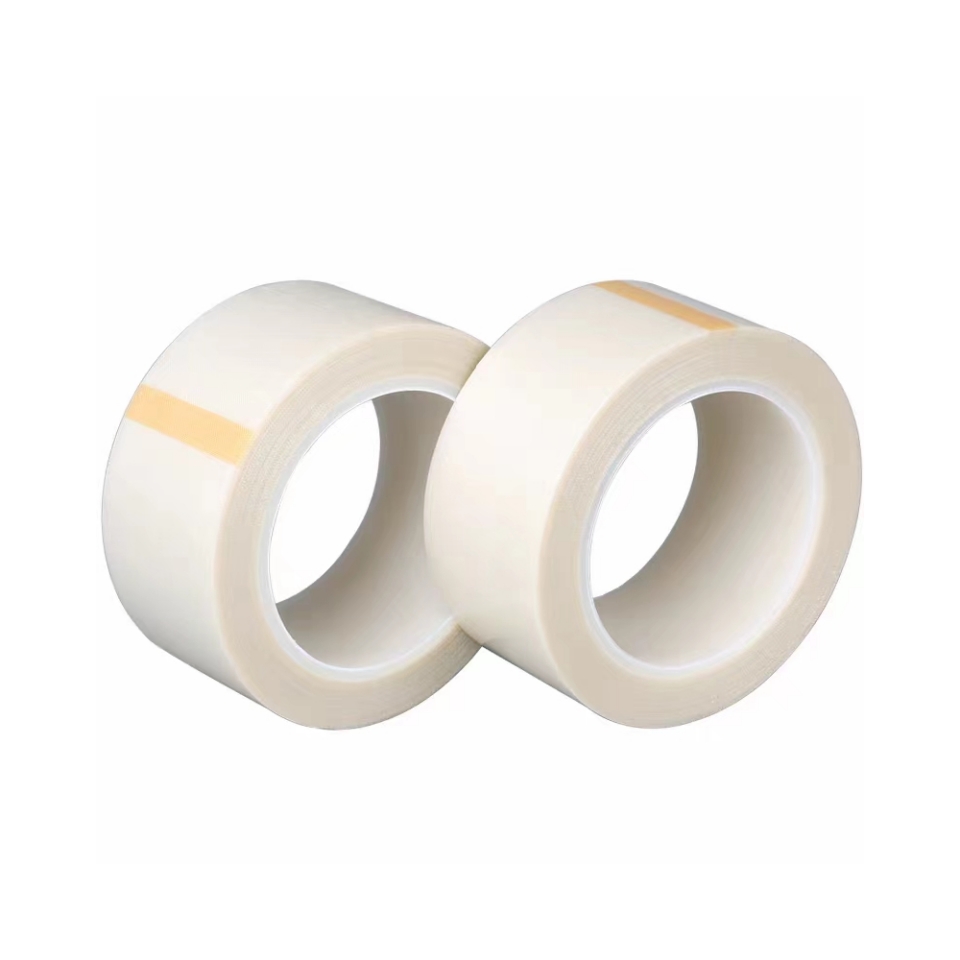

glass cloth tape
Insulation wrapping of transformers, air conditioning contactors, and motor coils; SMT process high temperature protection
Product characteristics
High temperature resistance
insulation
high breakdown voltage resistance
Product Performance Table
| Product model | colour | Glue system | base material | Base material thickness（ μ M) | Total thickness（ μ M) | Temperature resistance (℃) | Peeling force (N/25mm) | Tensile strength (N/25mm) | Elongation rate (%) | Breakdown voltage (KV) |
| MS1918 | white | silica gel | Glass cloth | 130 | 180 | 200 | 5 | 380 | 5 | 3 |
| MS1920 | white | silica gel | Glass cloth | 130 | 200 | 200 | 5.5 | 380 | 5 | 3 |
| MS2023 | white | silica gel | Glass cloth | 130 | 230 | 200 | A: 10/B: 10 | 400 | 7 | 3 |
